Fast trail bike with enduro genes. Exclusive, balanced, remarkable suspension and precise handling.

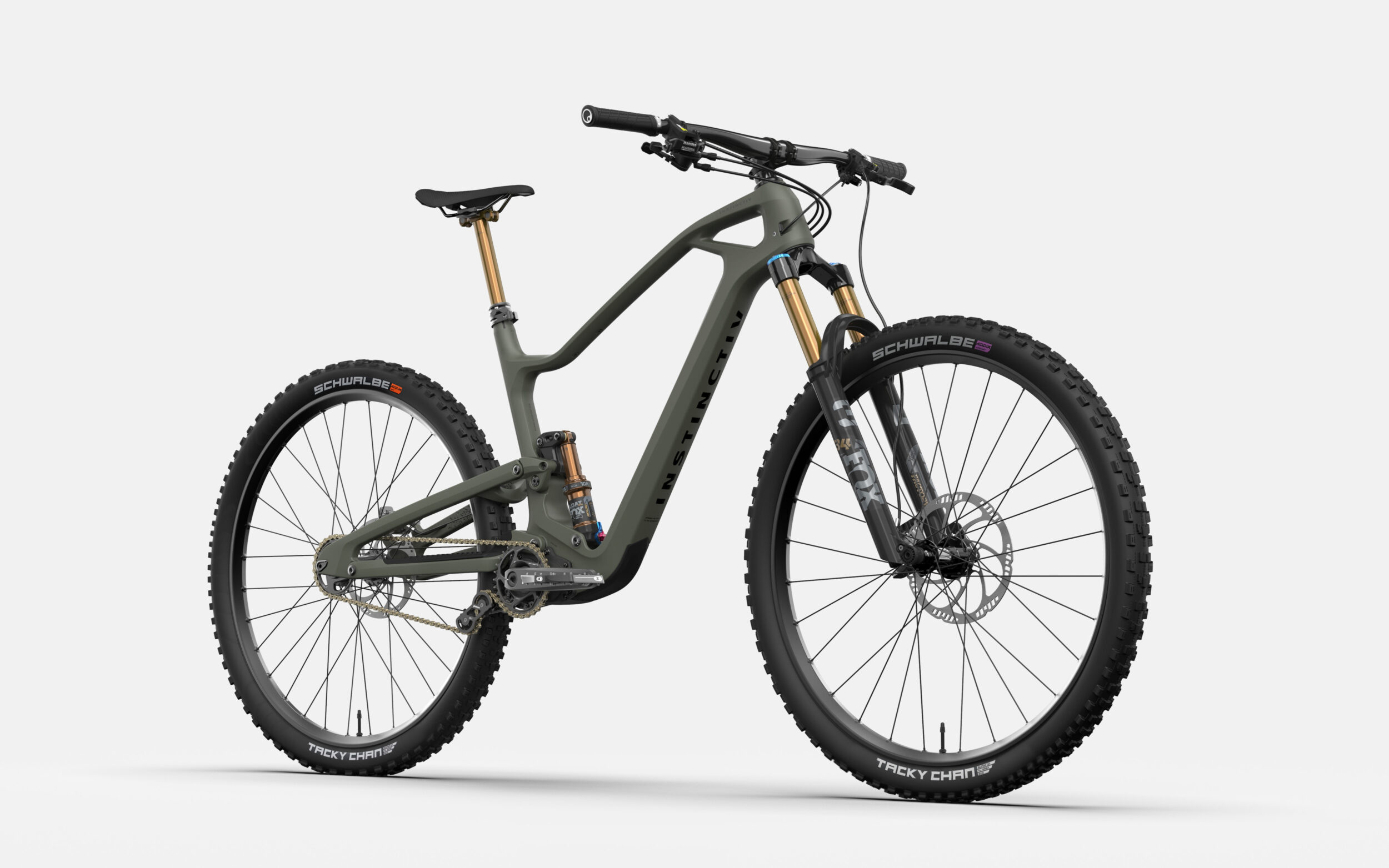

Kodiak 130 gearbox mountain bike frame.

140 / 130 mm of travel

High-performance carbon frame, made with love and a high level of details. Tested in many enduro races, coated and assembled in Europe.

forget broken derailleurs

Our gearbox mtb's are equipped with a Pinion C1.12, giving you a huge 600% range, equal gearsteps and grip, trigger or electronic shifting.

more time on the trails

The Pinion gearbox operates in an open bath and is self-lubricating. Practically maintenance free, which means more time on the trails.

silent ride

You can equip your Kodiak with a Gates carbon belt to enjoy an extremely silent ride. And you never need any grease.

patented PUMA suspension

Thanks to our multilink design we could tweak the leverage ratio independently from other kinematic factors. Together with the low unsprung mass in the rear wheel, this gives an exceptional amount of grip.

body height

Stand straight with your back against a wall and place a book on your head. Make a mark on the wall with tape and measure the distance between the bottom of the book and the floor.

leg length

Stand straight up with your back against a wall with a book between your legs. Pull up the book, simulating the pressure of sitting on a bike saddle. Make a mark on the wall with tape and measure the distance between the top of the book and the ground.

MD

LG

XL

  • your length (cm)
  • 165 - 185
  • 175 - 195
  • 185 - 205
  • stack
  • reach
  • top tube
  • head tube angle
  • head tube
  • seat tube angle
  • seat tube
  • chainstay
  • wheelbase
  • bb drop
  • bb height
  • standover height
  • 613
  • 455
  • 604
  • 64.8 °
  • 110
  • 76.3 °
  • 430
  • 445
  • 1224
  • 28
  • 344
  • 694
  • 622
  • 489
  • 641
  • 64.8 °
  • 120
  • 76.3 °
  • 460
  • 445
  • 1262
  • 28
  • 344
  • 724
  • 635
  • 521
  • 677
  • 64.8 °
  • 135
  • 76.2 °
  • 460
  • 445
  • 1301
  • 28
  • 344
  • 723
  • min. seat height*
  • max. seat height*
  • max. insertion depth
  • 633
  • 733
  • 228
  • 688
  • 818
  • 258
  • 688
  • 818
  • 258

All sizes are given in millimeters, unless stated otherwise.
* with a saddle stack of 40mm, a dropper post of 125 mm for size medium and a dropper post of 150 mm for sizes large and extra large.

Carbon fibre monocoque with 130mm of rear travel. PUMA suspension system. Internal cable routing. Rockers, links and pivot axles from AL7075. Frames are assembled in-house. Coating is a two-component, 3 layer system, applied by hand in Europe. Post Mount 180 mm brake system. Max tire width: 2.6”.

Sealed double row ball bearings, sealed max ball bearings and self lubricating bronze graphite bearings

The frame set comes with a DT Swiss RWS 148×12 (X12), with detachable lever, HWQASM00S2035S

The frame set comes with an Instinctiv 30T chainring and Pinion 30T sprocket.

The frame set comes with Acros head set bearings with block-lock.

Pinion C1.12 gearbox, 12 gears, 600% range, 166 mm Q factor, with 170 mm forged cranks and grip shift. Optionally you can have this gearbox with Instinctiv Trigger Shift.

Optional Pinion C1.12i Smart.Shift gearbox, 12 gears, 600% range, 166 mm Q factor, with 170 mm forged cranks.

Standard this bike comes with a KMC 11E light weight chain, optionally this bike can be equipped with a carbon belt drive.

14.6 kg for a full bike, based on the lightest configuration in size LG, without pedals.

110kg is the maximum rider weight limit, which includes the gear and luggage (helmet, clothing, backpack, etc.)

10 years on the frame for the original buyer the general terms and conditions apply.

This bike is suitable for enduro riding up to ASTM category 4: technically demanding downhill sections on rough terrain with jumps up to 122 cm (48 inches) and a maximum speed of 40 km/h (25 mph).

Fox 36 SL Factory with 140 mm travel, 15QRx110, 44 mm rake.

Fox Float Factory, 185×50mm, Trunnion.

Magura Louise Elite, Magura MT7 or Magura Gustav Elite brakes, with 1-finger lever and 4 piston calipers.

Magura MDR 203 mm front disc, Magura MDR 180 mm rear disc.

DT Swiss E1900 Spline 29" front wheel, 110×15 BOOST, ISO 6 bolt.

DT Swiss E1900 Spline 29" rear wheel, 148×12 BOOST, ISO 6 bolt, HG.

Schwalbe Tacky Chan TLE ADDIX Soft Super Trail 29 x 2.40.

Raceface Turbine R35 alloy, 8° backsweep, 20mm rise or 77Designz carbon handlebar Barlerina 35 / 800mm

77Designz One Piece Stem 35 mm.

Ergon GE1 MTB Enduro Evo on bikes with Instinctiv trigger shift of Pinion Smart.Shift, Ergon GA2 black grips on bikes with DS2 grip shift.

OneUp V3 or Fox Transfer Factory dropper post with lever, 150mm or 180mm.

progressive

The Kodiak 130 has a progressive suspension character. This way the suspension is supple and sensitive around sag, yet big hit capable. Plush with little risk of bottoming out. How progressive a bike is depends primarily on the regression of the leverage ratio.

We tested prototypes with various leverage curves and found the sweet spot: a leverage ratio that decreases by 15% throughout the bikes’ travel.

If you want the suspension to be even more progressive there is the option of adding extra volume spacers in the shock. This is something we tweak when we set up the bike for you, based on your weight and where you plan to ride.

efficient

Mountain bikes from major brands tend to be advertised with a single anti-squat percentage. What they don’t tell you is they can suffer from vastly different anti-squat values when shifting down the cassette. We have measured deviations up to 75%.

The Kodiak 130 has a anti-squat value of around 115% at sag across all gears thanks to our chainline not being affected by gear shifts.

So, why 115% anti-squat? In short this compensates for 100% of pedal bob induced by the pedal torque and another 15% to account for your body movement on the bike.

Anti-squat values come down throughout the bikes’ travel: from more than 120% down to less than 90%. This way our team crafted a very efficient yet lively suspension platform.

fully active

The Kodiak 130 benefits from very little pedal kickback. Especially at high speed, in heavier gears kickback is negligible.

This is a major benefit because it means the suspension remains fully active and sensitive during quick descends, even when pedaling.

We achieved this thanks to a combination of our integrated gearbox and compact kinematics with limited chain growth.

sensitive

Anti-rise levels are optimal at 90 to 100% throughout the bikes’ suspension travel.

This means that brake forces accurately compensate for any mass transfer during deceleration. Not only at sag-point but at any point throughout the bikes’ travel.

In effect this stops you and the bike from tilting excessively forward under hard braking. At the same time levels around 100% still allow the suspension to remain active and sensitive throughout your braking zone.

This way you won’t feel like you’re on a hardtail once you approach some brake bumps.

smooth

The Kodiak 130 is designed to offer a near vertical initial axle-path. A vertical or rearward axle path improves the suspension’s smoothness.

When the vectors from trail obstacles and the wheel path are more in line this results in the suspension being compressed rather than the bike being ‘held back’.

The favorable axle path is a result of the patented Puma kinematic platform and its very compact rocker layout.

leverage ratio

anti rise

axle path

anti squat

pedal kickback

Kodiak 130

 7.240,64

Kodiak 130

size

medium large extra large large

gearbox

drivetrain

fork

shock

wheels

seatpost

cockpit

brakes

saddle

pedals

delivery time

After your order is accepted, we will prepare your frame for coating, have it coated in the color you selected. After the frame is back in our workshop, we will assemble your frame, build your bike by hand according to your configuration and prepare it for shipping. Current delivery time is about 6 - 9 weeks.

geometry

Learn more about the bike geometry and sizes. Go to geometry.

specifications

Complete list of frame set specifications and components. Go to specifications.

taxes

Pricing is including your local VAT tax. If you visit us from a country outside the EU, you will see pricing without tax.

configuration

Changes in the configuration, like adding or removing components, are not displayed in the images.

colors

The colors shown in the configurator come as close to real colors as possible, but deviations can occur, depending on your screen settings and light conditions.

user manual

You can download the user manual of your Kodiak here. In the manual you will find part numbers, specifications, exploded views of the frame and suspension construction, which can help to service your bike.

Download the Kodiak User Manual
